Description

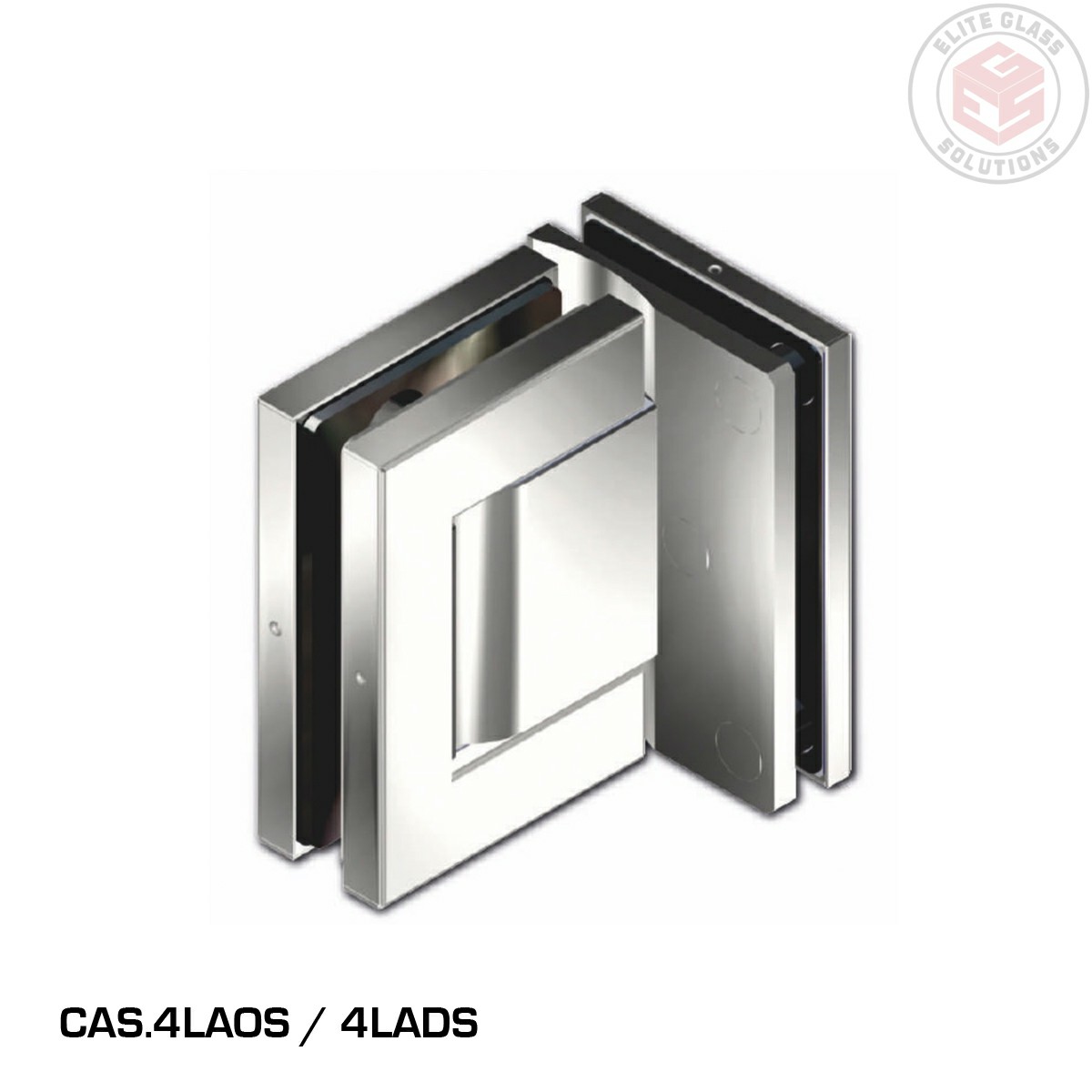

90° Glass-to-glass hydraulic hinge.
Patented hydraulic system tested to 500,000 cycles according to the EN 1154-2 standard.
A true Casma door closer, entirely made in Italy, designed for doors weighing up to 100 kg and with a maximum width of 1000 mm.

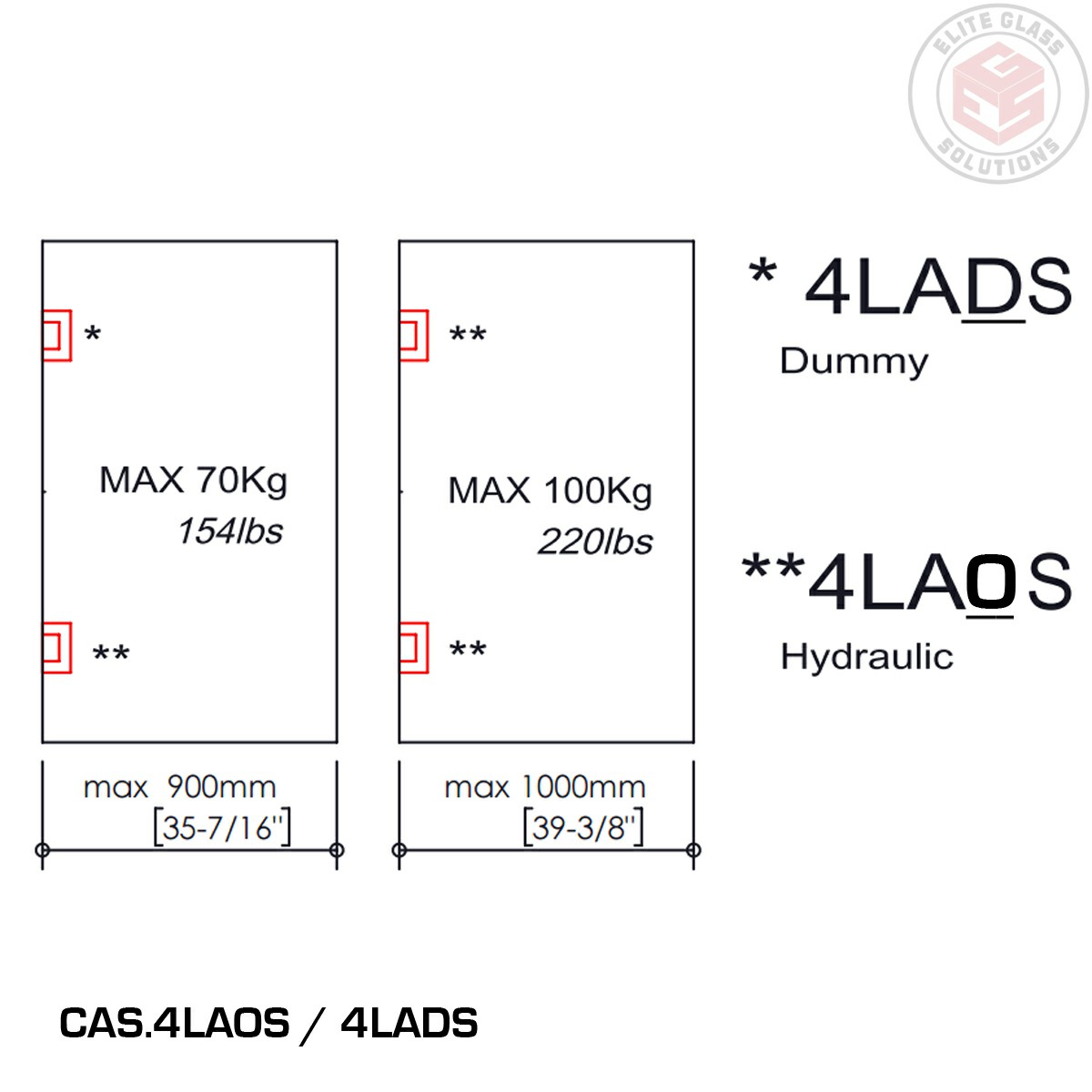

1 x CAS.4LAOS (Hydraulic) and 1 x CAS.4LADS (Non- Hydraulic)
For use on 8-14mm doors and gates with a maximum width of 900mm, 70kg.
2 x CAS.4LAOS (Hydraulic)
For use on 8-14mm gates from 900-1000mm, 100kg.
Characteristics
- Strength EN 1154 – 2
- Max. door weight 100 kg
- Max. door width 1000 mm
- Closing speed adjustment
- Stop at 90°
- Limit switch, stroke block and mechanical hardening at 110°
- Super quick installation
- Installation without cutting the floor
- Latching speed adjustment of the final closing speed
- Complies with ASA and ANSI standards
